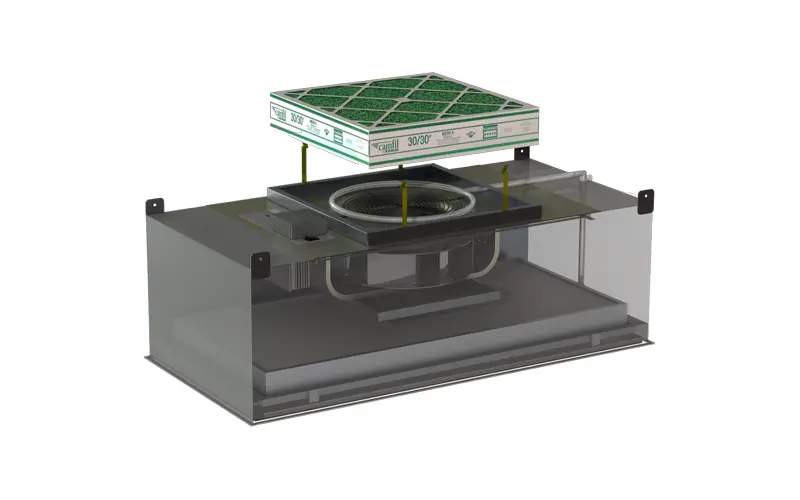

Camfil Pharmaseal FFU

Name: Camfil Pharmaseal FFU
Brand: Camfil

The Camfil Pharmaseal FFU is a high-performance fan filter unit engineered for pharmaceutical and life science cleanrooms. Featuring room-side serviceability, advanced EC motor technology, and seamless automation integration, it delivers consistent airflow, energy savings, and rapid maintenance. With leak-free construction and built-in prefiltration, it ensures compliance, reliability, and long-term operational efficiency.

Brand: Camfil

Categories: Fan Filter Units

Used in: Pharma/Lab · Cleanroom

Priced on request

Lead time confirmed with your quote.
Quotes back within one business day.
Account holders get contract pricing.

Request a quote

Questions? We’ve got the answers.

Our team of air filtration experts is ready to assist you.

Get in touch (781) 272-0060

Overview of Camfil Pharmaseal FFU

Purpose-built for demanding cleanroom environments, the Camfil Pharmaseal FFU combines advanced filtration, scalable controls, and rugged housing into a compact, energy-efficient ceiling module. With precision airflow, rapid installation, and compliance-ready design, it minimizes downtime and maximizes operational flexibility—making it the trusted solution for pharmaceutical, biotech, and life science facilities worldwide.

Room-Side Serviceability for Maximum Uptime

The Pharmaseal FFU is engineered for efficiency with all key components—including the fan motor, HEPA filter, diffuser plate, and prefilter—accessible from the cleanroom side. This design eliminates the need to access the ceiling plenum during maintenance, allowing rapid replacements or upgrades while minimizing downtime and disruptions in critical cleanroom operations.

Energy-Efficient EC Fan Motor with Intelligent Control

Equipped with a brushless electronically commutated (EC) fan motor, the Pharmaseal FFU delivers superior energy savings, low noise, and long-term reliability. Variable speed control allows for dynamic airflow adjustments, whether managing a single unit or hundreds, ensuring cleanroom environments remain stable, efficient, and responsive to changing system demands.

Seamless Integration with Monitoring and Automation

Designed for scalability, the Pharmaseal FFU integrates easily into building management systems and supports both local and remote control via Camfil’s FC-100 handheld and FC-200 wall-mounted controllers. Each unit features a unique identifier for mapping, diagnostics, and scheduling, enabling precise monitoring, grouped control, and optimized system-wide performance.

Specifications

Type	Room-side testable fan filter unit (FFU)
Efficiency	ISO 15 E to ISO 65 E per ISO 29463-1
Module Sizes	2x2, 2x4, 4x4
Seal	Accepts gel or gasket seal filters
Depth	53 mm and 100 mm Megalam
Prefilter	Integrated, accepts industry standard 4" filters, MERV 8 to MERV 14
Motor/Blower	Electronically commutated (EC) brushless DC external rotor
Fan	Backward inclined, high efficiency, low noise
Housing	All-welded, guaranteed leakfree to 3 in w.g.
Airflow	217 cfm (2x2), 538 cfm (2x4), 1,163 cfm (4x4) at 100 fpm
Environmental Resistance	0.54 in w.g. (53 mm filter), 0.38 in w.g. (100 mm filter)
Power	34 to 139 watts
Sound Level	42 to 47 dBA
Power Input	200-277 V, single-phase, 50-60 Hz
Aerosol Injection	Proprietary aerosol injection and distribution system; deviates less than 7% from 50 µg/l target
Leak Testing	Room side scan testable; tested at 10 critical air-exiting points
Controls	FC-100 handheld (up to 100 FFUs), FC-200 wall-mounted (up to 200 FFUs), Ethernet
Weight	67 to 165 lbs installed with filter
Energy Savings	EC over AC controllers can exceed 30% annually
Applications	Life science, pharmaceutical, cleanroom
