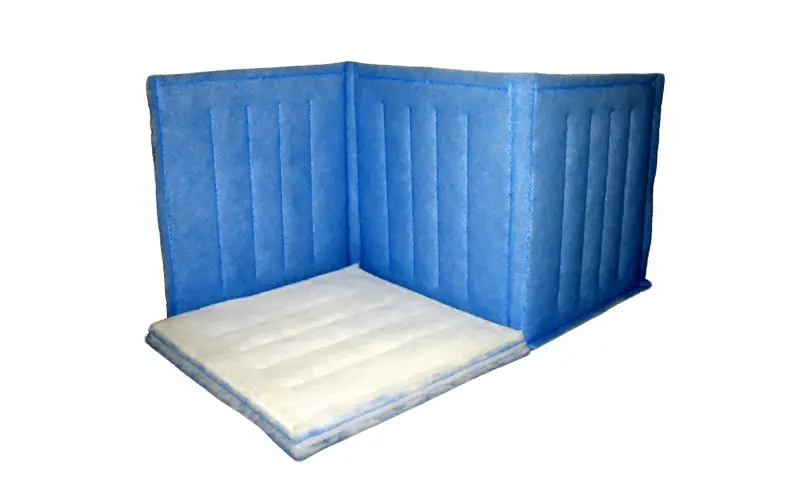

Fiber Bond Poly Panel
The Fiber Bond Poly Panel is a safe, economical polyester HVAC filter designed for general-purpose commercial and industrial use. Its dual-layer media, moisture resistance, and self-sealing construction ensure consistent particle capture without glass fibers, media shedding, or bypass leakage.
UL Listed
Item SKU: --
Manufacturer SKU: --
From $5.80 / each
Questions? We’ve got the answers.
Our team of air filtration experts is ready to assist you.
Overview of Fiber Bond Poly Panel
Built for reliability and ease of use, the Poly Panel offers dependable filtration in systems where cost efficiency and safety are essential. Its 100% polyester media is non-carcinogenic, non-shedding, and flame-retardant, making it ideal for schools, offices, manufacturing sites, and humid environments where fiberglass filters may degrade or break down.
Economical Dual-Layer Filtration
The Poly Panel features two performance-driven polyester layers for effective particulate capture. The blue downstream layer is adhesive-coated to retain smaller dust particles, while an internal wire grid maintains rigidity without restricting airflow. This balanced construction provides long-lasting service at an affordable price—making it a practical upgrade from low-grade throwaways.
Safe, Clean, and Easy to Work With
Unlike fiberglass alternatives, this filter contains no glass fibers or hazardous materials. It’s lightweight, non-irritating to handle, and easy to cut for custom installations. Whether used in maintenance programs or high-volume changeout cycles, it offers clean handling without shedding or media crumbling during service.
Moisture-Resistant, Self-Sealing Design
Heat-sealed edges and a flexible perimeter allow the panel to conform tightly within filter frames, preventing bypass even in systems with vibration or high humidity. The polyester media resists sagging or breakdown when exposed to moisture—ensuring reliable performance in demanding air-handling environments.
Specifications
| Efficiency | MERV 7 per ASHRAE 52.2-2012 (M) |
|---|---|
| Construction | Two layers of polyester media heat-sealed around internal support grid |
| Media | Bonded polyester |
| Support Grid | Internal grid with cross wires; prevents bowing and fluttering |
| Tackifier | Non-drying tackifier on blue air-leaving side |
| Seal | Self-sealing design; no clips or latches required |
| Initial Resistance | 0.16 in w.g. at 295 fpm |
| Final Resistance | 1.0 in w.g. recommended |
| Dust Holding Capacity | 222 g at 295 fpm |
| Max Temperature | 200°F |
| UL Rating | UL 900 classified |
| Moisture Resistance | Will not collapse when exposed to moisture |
| Packaging | 36 filters per carton |
| Format | Panels and continuous links |
Sizes & part numbers
7 options. Choose one to see its price and stock.
| Size | Efficiency | Item SKU | Manufacturer part # | Case qty |
|---|---|---|---|---|
| 12 x 24 x 1 | MERV 7 | FBFPPL11224 | 250001224 | 36 |
| 16 x 20 x 1 | MERV 7 | FBFPPL11620 | 250001620 | 36 |
| 16 x 25 x 1 | MERV 7 | FBFPPL11625 | 250001625 | 36 |
| 20 x 20 x 1 | MERV 7 | FBFPPL12020 | 250002020 | 36 |
| 20 x 24 x 1 | MERV 7 | FBFPPL12024 | 250002024 | 36 |
| 20 x 25 x 1 | MERV 7 | FBFPPL12025 | 250002025 | 36 |
| 24 x 24 x 1 | MERV 7 | FBFPPL12424 | 250002424 | 36 |
