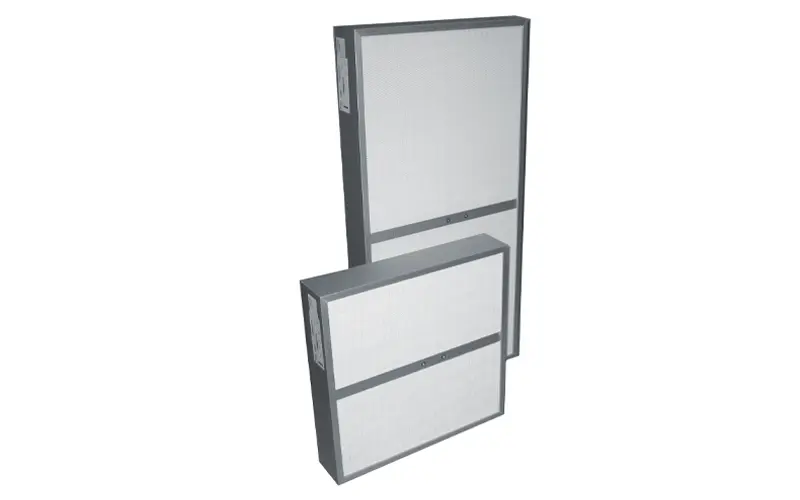

Camfil Slimline DCM
The Camfil Slimline DCM saves space while delivering reliable cleanroom air quality. Its lightweight, compact design integrates seamlessly into ceiling grids, offering powerful particulate control with easy installation. Perfect for healthcare, pharmaceutical, and controlled environments that demand both performance and efficiency.
Priced on request
- Lead time confirmed with your quote.
- Quotes back within one business day.
- Account holders get contract pricing.
Questions? We’ve got the answers.
Our team of air filtration experts is ready to assist you.
Overview of Camfil Slimline DCM
The Camfil Slimline DCM provides advanced air purity in a slim, space-saving design. Built for cleanrooms, healthcare suites, and controlled environments, it combines HEPA or ULPA filtration with durable construction and consistent airflow management. Its low-profile frame makes installation simple without sacrificing protection, compliance, or long-term system performance.
Compact, Space-Saving Design
Engineered for tight ceiling spaces, the Slimline DCM conserves valuable room for lights, ducts, or equipment. Its lightweight frame integrates easily into standard ceiling grids, making it a practical choice for facilities with strict space requirements that still need uncompromising cleanroom protection.
Superior Particle Control
Available in HEPA or ULPA grades, the Slimline DCM provides exceptional filtration efficiency, capturing even the smallest particles that threaten sensitive processes. This ensures ultra-clean air in pharmaceutical manufacturing, medical suites, and other critical environments where compliance and safety are non-negotiable.
Durable, Reliable Performance
Constructed with extruded aluminum profiles and stable polyurethane seals, the Slimline DCM is built to last in demanding environments. Its diffusion disc ensures even airflow across the filter face, maintaining cleanroom balance and compliance while delivering dependable long-term protection with minimal maintenance needs.
Specifications
| Efficiency | 95%, 99.99% at 0.3 micron, 99.9995% at MPPS |
|---|---|
| Type | Low-profile ducted HEPA/ULPA ceiling module |
| Height | 4.73" (add 2" for collar) |
| Media Pack | 41 mm, fully encapsulated in polyurethane sealant |
| Media Spacing | Controlled Media Spacing (CMS) with hot melt separators |
| Frame | Extruded aluminum profiles, Klip-Lok corner mechanism |
| Diffuser | Integrated diffusion disc; fixed or adjustable for filter-to-filter balancing |
| Collar | 10" or 12" with integral raised ridge for flexible duct |
| Grille | White epoxy powder-coated steel, 62% open area |
| Grid Compatibility | Standard 1.5" or 2" T-bar grid; seismic tabs included |
| Environmental Resistance | 0.45 in w.g. range at 100 fpm (see chart) |
| Weight | 21 to 37 lbs |
| Available Sizes | 23.62x23.62, 23.62x47.62 in |
