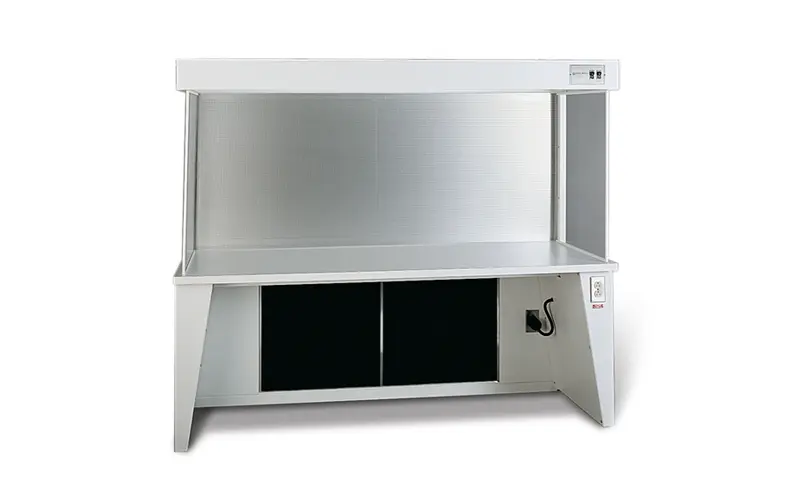

Envirco LF Horizontal Flow Clean Bench
The Envirco LF Horizontal Flow Clean Bench provides ISO Class 5 clean air in a compact, vibration-isolated design. Its horizontal laminar airflow, HEPA filtration, and quiet operation protect sensitive products while supporting operator comfort—ideal for laboratories, inspection stations, and critical process applications.
Priced on request
- Lead time confirmed with your quote.
- Quotes back within one business day.
- Account holders get contract pricing.
Questions? We’ve got the answers.
Our team of air filtration experts is ready to assist you.
Overview of Envirco LF Horizontal Flow Clean Bench
Designed for contamination-sensitive environments, the LF Clean Bench delivers horizontal unidirectional airflow and HEPA-filtered air to maintain ISO Class 5 conditions. Its two-piece, vibration-isolated construction allows easy transport and installation, while durable materials, integrated lighting, and quiet, adjustable airflow ensure consistent protection for products and precision work.
Horizontal Laminar Flow for Product Protection
Positive, unidirectional airflow delivers clean, ISO Class 5 air across the work surface, protecting samples, electronics, medical devices, and pharmaceuticals. HEPA filtration captures particulates efficiently, preventing contamination while ensuring a stable, controlled environment for sensitive processes in laboratories, inspection areas, and other critical applications.
Vibration-Isolated Two-Piece Design
Separate blower and table modules minimize vibration transmission to the work surface, enhancing stability for precise work. The modular design allows the bench to fit through standard doorways and simplifies transport, setup, and maintenance while preserving airflow integrity and providing a flexible solution for cleanroom and laboratory environments.
Durable, Operator-Friendly Construction
Constructed from welded metal with corrosion-resistant polyurethane enamel, the clean bench includes clear acrylic side panels, a non-glare work surface, and built-in fluorescent lighting for visibility. Adjustable leveling feet, a solid-state speed controller, and quiet operation (~65 dBA) ensure operator comfort, easy use, and consistent clean air performance.
Specifications
| Cleanliness Class | ISO Class 5 (Class 100) |
|---|---|
| Airflow Pattern | Horizontal unidirectional (laminar) flow |
| Efficiency | HEPA, minimum 99.99% at 0.3 micron, aerosol challenged (zero probed) |
| Frame | Aluminum |
| Prefilter | Washable polyurethane foam, 30% ASHRAE |
| Face Velocity | 90 fpm ±10 fpm average, 6 in from diffuser screen; uniformity ±20% or better |
| Airflow | 900 to 1,800 cfm (1,529 to 3,058 m³/hr) |
| Motor/Blower | Direct drive continuous duty 1/2 hp, sealed-for-life bearings, inherent overload protection, dynamically balanced, vibration dampening mounts |
| Speed Control | Solid state with RFI suppression |
| Sound Level | 65 dBA ±3 at 30 in from filter face |
| Cabinet | Welded metal with corrosion resistant polyurethane enamel finish; two-piece construction |
| Work Surface | Non-glare plastic laminate; 24" deep |
| Side Panels | 1/4" clear removable acrylic |
| Lighting | Recessed fluorescent, 150 foot candles at work surface |
| Electrical | 115 V, single phase, 60 Hz, 15-20 amp; 9.2 to 15.7 amps; 220 V 50-60 Hz available with transformer |
| Weight | 760 to 1,050 lbs shipping |
| Standards | IEST Recommended Practices |
| Options | Lab service, Magnehelic gauge, stainless steel IV rod, UV light fixture, stainless steel work surface, stainless steel side panels |
| Applications | Tissue culture, sterility testing, pharmaceutical preparation, critical sample preparation, microscopy, analytical balances, QC inspection, optical assembly, microelectronic fabrication |
| Available Sizes | 4 ft, 5 ft, 6 ft, 8 ft nominal (widths 51", 63", 75", 102") |
