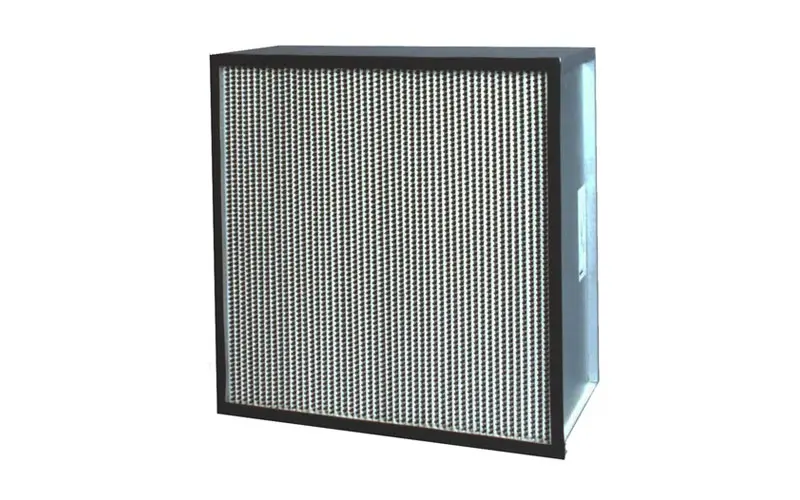

Camfil Absolute XS
The Camfil Absolute XS provides reliable HEPA protection for critical environments. Designed for strength, efficiency, and long service life, it delivers certified air purity while reducing energy costs—helping healthcare, pharmaceutical, and industrial facilities maintain compliance and protect sensitive processes.
UL Listed
Priced on request
- Lead time confirmed with your quote.
- Quotes back within one business day.
- Account holders get contract pricing.
Questions? We’ve got the answers.
Our team of air filtration experts is ready to assist you.
Overview of Camfil Absolute XS
The Camfil Absolute XS is a standard-capacity HEPA filter built for environments where dependable air purity is non-negotiable. Combining certified performance, leak-proof construction, and durable materials, it delivers lasting protection and energy efficiency. Ideal for healthcare, pharmaceuticals, food production, and electronics, it ensures safe and compliant operations.
Certified HEPA Protection
Manufactured under strict quality control, the Absolute XS meets IEST-RP-CC001 standards and achieves 99.97% to 99.999% efficiency at 0.3 microns. This ensures consistent particle removal, protecting people, products, and processes in sensitive environments that demand uncompromising filtration performance.
Leak-Free Reliability
The X-Body frame design eliminates penetrating fasteners, preventing leaks or bypass. Combined with a fully encapsulated filter pack using urethane potting, the Absolute XS provides complete seal integrity, guaranteeing reliable filtration throughout its entire service life.
Durable, Energy-Efficient Build
A 16-gauge galvanized steel frame offers corrosion resistance and dimensional stability, even in harsh or humid environments. Aluminum separators with hemmed edges protect the micro glass fiber media, ensuring uniform airflow, mechanical strength, and reduced pressure drop for longer filter life and energy savings.
Specifications
| Efficiency | 99.97%, 99.99%, 99.999% at 0.3 micron (IEST Type A, C, D) |
|---|---|
| Depth | 11.5" |
| Pleat Separators | Corrugated aluminum, hemmed safe edges |
| Capacity | Standard capacity |
| Media | Micro glass fiber, waterproof |
| Media Area | 33.4 to 153.6 sq ft |
| Frame | 16-gauge galvanized steel with zinc aluminum alloy finish, X-Body, no fasteners |
| Media Seal | Fire-resistant urethane potting, fully encapsulated |
| Gasket | Seamless poured-in-place polyurethane, dovetail neoprene peel-and-stick, or gel seal |
| Airflow | 190 to 1,080 cfm at 1.00 in w.g. |
| Initial Resistance | 1.0 in w.g. ±10% at rated capacity |
| Burst Strength | Withstands 10 in w.g. without media pack failure |
| Max Temperature | 175°F (80°C); 200°F (93°C) with neoprene gasket |
| Dimensional Tolerance | -1/8", +0"; square within 1/8" |
| Weight | 22.4 to 43.8 lbs |
| Standards | IEST-RP-CC001 |
| UL Rating | UL 900 and UL 586 |
| Quality System | ISO 9001:2015 |
| Applications | Medical facilities, pharmaceutical manufacturing, electronic component manufacturing, food and beverage |
| Available Sizes | 12x12x11.5, 24x12x11.5, 12x24x11.5, 24x24x11.5, 23.38x11.38x11.5, 11.38x23.38x11.5, 23.38x23.38x11.5; custom sizes available |
